Details New

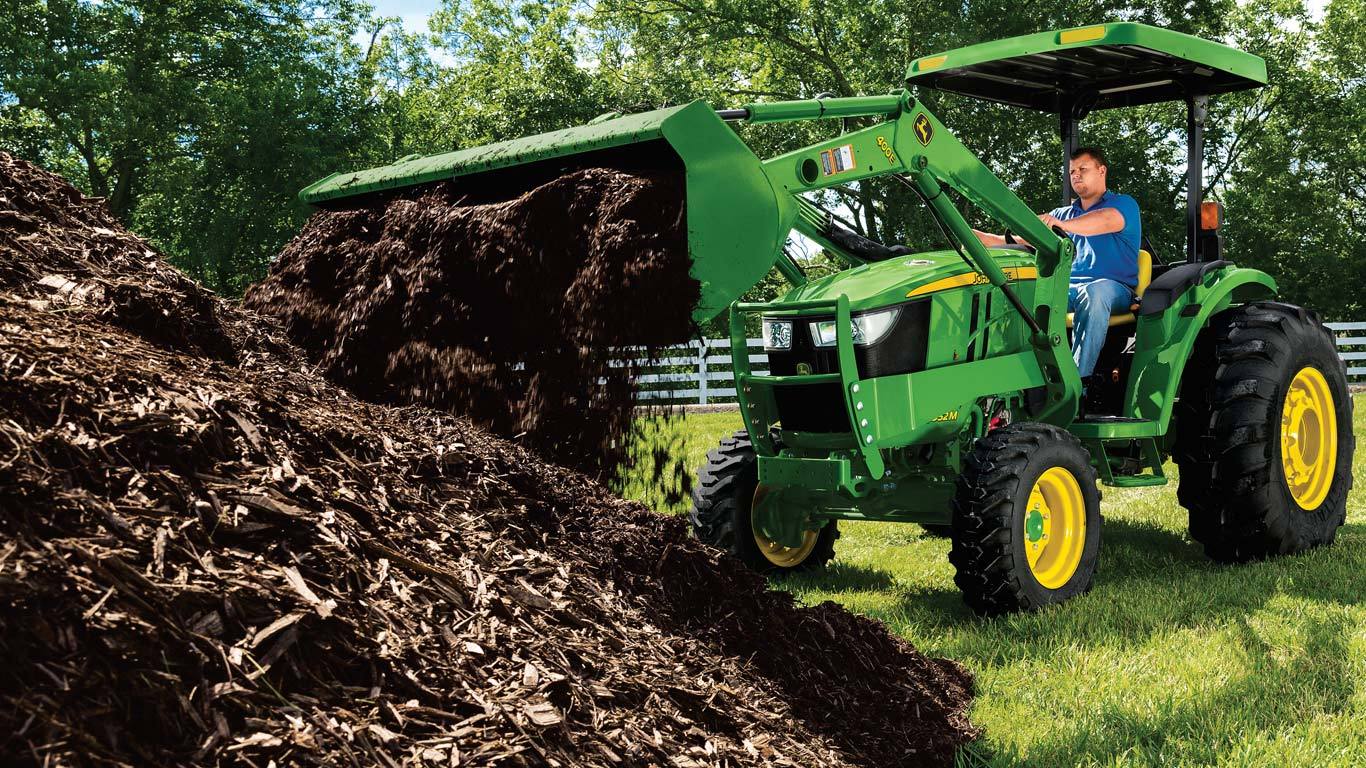

Loader

400E

Test Drive

REQUEST A QUOTE

Value Your Trade

Get Financing

Key Features & Specs

Compatible with 4M and 4R Series Tractors
Rigid mounted with parking kit available
Easy maintenance points keeps you on the job
1,760 pounds (800 kg) lift capacity

Print Page

FEATURES

SPECIFICATIONS

EXPAND / CLOSE All

End-of-pin lubrication means easy maintenance

Close up of grease fitting

Pivot point grease fitting locations (400X shown)

All pivot points on the loader have grease fittings that are accessible from the side of the loader to make greasing the loader much easier, ensuring that all grease points are more likely to be serviced. No more searching for grease points that are hard to find. Removing the grease gun from the grease fitting is not a problem as sufficient radius has been left to allow the grease gun tip to be rotated to the side for removal from the fitting.

Parking stand kit

With the BW15872 parking stand kit, the 300E Loader can be quickly and easily removed from the tractor without tools.

Similarly, the BW16127 parking stand kit allows for the 400E Loader to be parked from the tractor.

Instructions for attaching the loader

Instructions for detaching the loader

The kit includes the following:

Parking stands
Handled pins
Hydraulic hoses
Quick-couplers
Mounting bracket and hardware

Parking stand installed

Quick disconnect connected

Boom pins installed

EXPAND / CLOSE All

Key Specs

Maximum lift height (A)	2850 mm 112.1 in.
Lift capacity at full height	Measured at pivot (U) 1087 kg 2396 lb Measured at 500 mm ahead of pivot (V) 800 kg 1764 lb
Boom breakout force	Measured at pivot (Y) 1743.7 kg 3853 lb Measured at 500 mm ahead of pivot (Z) 1315.4 kgf 2902 lbf
Bucket rollback force capacity	At ground-level line (ZZ) 3485 lb 1580 kg
Clearance at full height - bucket dumped (C)	2298 mm 90.4 in.
Dump angle, degrees (E)	42 degree (angle)
Rollback angle, degrees (G)	28.6 degree (angle)

Tractor

Model	4044M, 4049M, 4052M, 4066M and OOS: 4044R, 4049R, 4052R, 4066R
Front tire	25x10-16.5 4PR R4
Rear tire	16.9-24 4PR
Front axle configuration
Wheelbase	1850 mm 73 in.
Pump capacity	10.2 gpm
Rated pressure	2500 psi

Loader

Base weight	150.99 kg
Leveling configuration
Bucket used	Materials
Bucket weight	108 kg 238 lb
Lift capacity at full height	Measured at pivot (U) 1087 kg 2396 lb Measured at 500 mm ahead of pivot (V) 800 kg 1764 lb
Lift capacity at 59 in. (1500 mm)	Measured at pivot (W) 1307 kg 2881 lb Measured at 500 mm ahead of pivot (X) 1043 kg 2299 lb
Boom breakout force	Measured at pivot (Y) 1743.7 kg 3853 lb Measured at 500 mm ahead of pivot (Z) 1315.4 kg 2902 lb
Bucket rollback force capacity	At maximum height (VV) 1866.1 kg 4112 lb At 59-in. (1500-mm) lift height (XX) 2355.1 kg 5191 lb At ground-level line (ZZ) 3487 kg 1580.6 lb
Dimensions	Maximum lift height (A) 2850 mm 112.1 in. At full height - bucket level(B) 2646 mm 104.1 in. At full height - bucket dumped (C) 2298 mm 90.4 in.
Overall length (I+F), ft (m)	3.522 m 11.5 ft
Overall height in carry position (J)	1.5 m 4.94 ft
Digging depth (H)	-146 mm 5.7 in.
Reach	At maximum height (D) 705 mm 27.7 in. At ground level - bucket level (F) 1672 mm 65.8 in.
Bucket angle	Dump angle, degrees (E) 42 degree (angle) Rollback angle, degrees (G) 28.6 degree (angle) Dump angle, ground 128.2 degree (angle)
Cycle times	Loader raise, seconds 4.26 seconds Loader lower, seconds 3.13 seconds Bucket dump, seconds 3.14 seconds Bucket rollback, seconds 2.42 seconds
