Details New

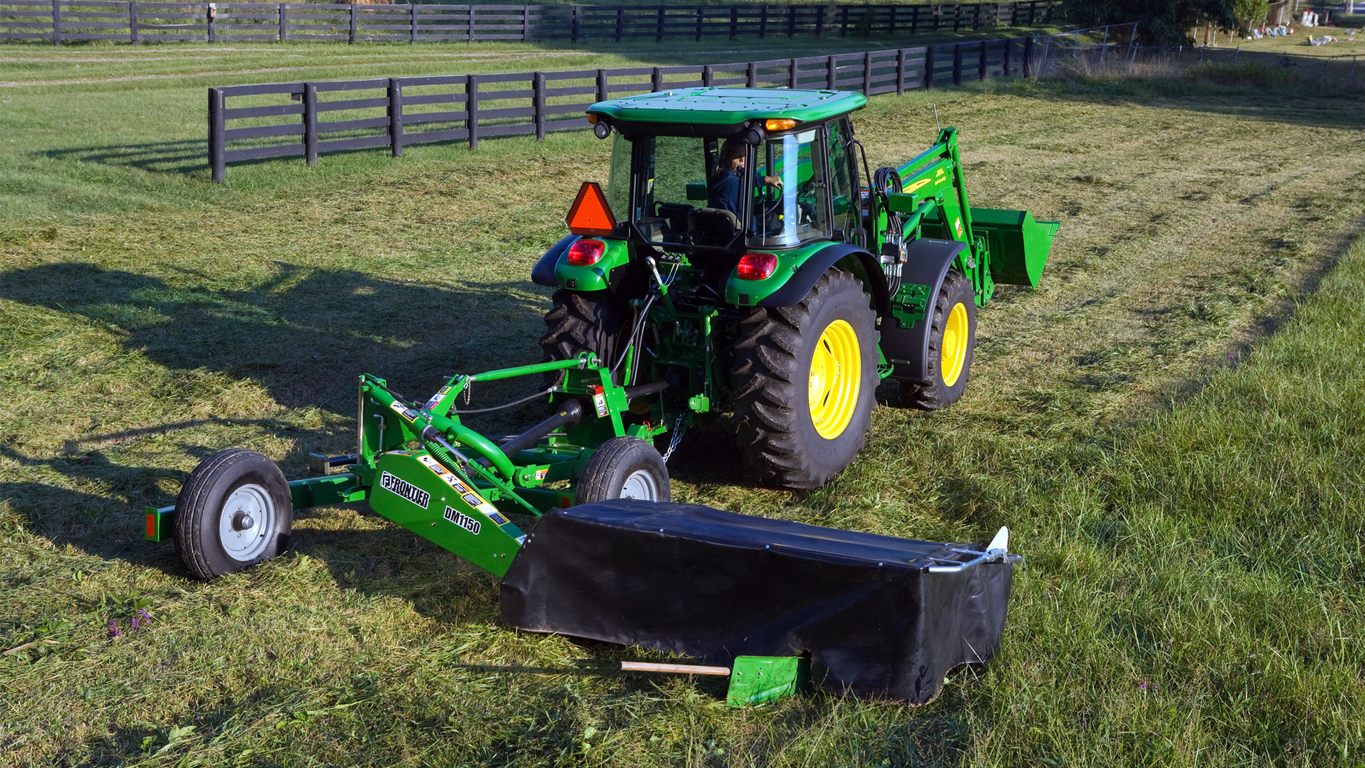

Disc Mower Caddy

DC10 Series

Key Features & Specs
  • Adjustable height clevis hitch
  • Hydraulic lift 3-point hitch
  • Ribbed tires for smooth ride

FEATURES
SPECIFICATIONS
EXPAND / CLOSE All
Adjustable height clevis hitch is standard
Hitch matches the caddy to the tractor drawbar height Hitch matches the caddy to the tractor drawbar height
#

The DC1000 Series Disc Mower Caddy is standard equipped with an adjustable clevis tongue to perfectly match the implement to the tractor drawbar height.

Hydraulic lift 3-point hitch makes raising and lowering a simple task
DC1000 Series Disc Mower Caddy 3-point hitch DC1000 Series Disc Mower Caddy 3-point hitch
#

The standard hydraulic lift 3-point hitch, which includes a cylinder, hoses, and tips, make raising and lowering the DC1000 Series Disc Mower Caddy a simple task.

Improved stability with standard John Deere weights
Weights allow for variable integrated ballasting Weights allow for variable integrated ballasting
#

The DC1000 Disc Mower Caddy utilizes standard John Deere weights to allow for a variable integrated ballasting system.

Ribbed tires for a smooth ride
Durable 11L x 15SL ribbed implement tires Durable 11L x 15SL ribbed implement tires
#

The DC1000 Disc Mower Caddy runs on durable 11L x 15SL ribbed implement tires that provide a smooth ride over even the toughest terrain.

EXPAND / CLOSE All
Dimensions
Transport height1.1 m
3.6 ft
Transport width2.1 m
6.9 ft
Transport length3.6 m
11.67 ft
Transport clearance0.26 m
10.5 in.
Maximum compatible disc mower cutting width3.1 m
10.17 ft, in.
Weight
Base machine719 kg
1,580 lb
Fully ballasted machine916 kg
2,020 lb
Maximum compatible disc mower645 kg
1,421 lb
Shipping818 kg
1,803 lb
Tractor compatibility
Minimum horsepower11.2 kW
15 hp
PTO speed540 rpm
PTO typeEqual angle Category 4
Hitch
Front hitch typeDrawn
Rear hitch typeIntegral - Category 2
Frame
Ballasting
Internal ballastingStandard
External ballastingUp to 10 suitcase weights
Tires
Hubs6 - Bolt
TypeRibbed implement
Size11L x 15SL
Lighting and safety
Transport lights
Safety chainStandard
Safety guardsStandard
MarkingsSMV
Jack typeScrew-adjustment
Set-up time
Warranty
Additional information
Key Specs
Front hitch type
Maximum compatible disc mower cutting width
Minimum horsepower
Rear hitch type
Transport clearance
Transport length
Transport width
