Ground-engaging components on 2623VT

3-section 2623VT in transport

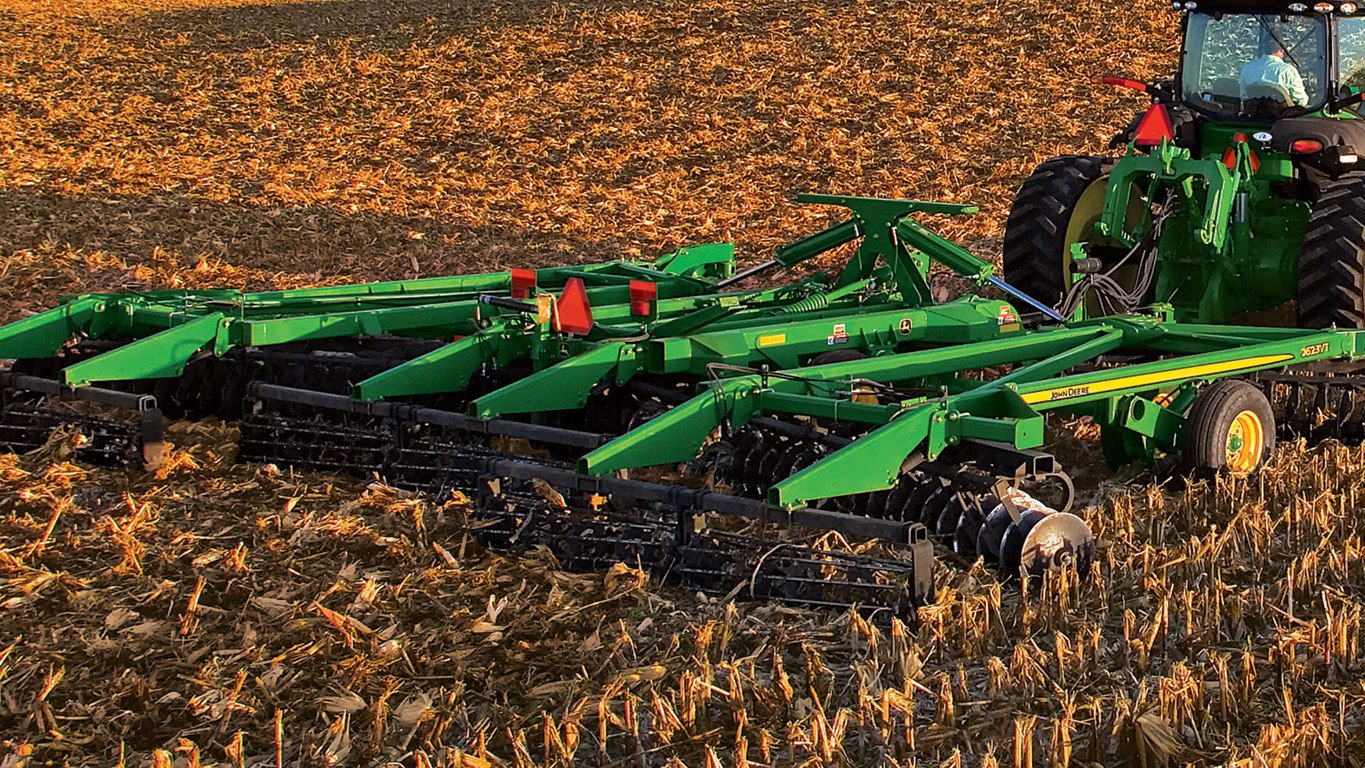

The John Deere 2623VT offers six different sizes to fit any size operation, big or small.

John Deere's 2623VT comes equipped on 185-mm (7.25-in.) spacing with solid shallow concavity spherical blades on the front gang and solid shallow concavity wavy blades on rear gang to size residue and mix soil.

A majority of the sizing is going to be done by the front gang and the rear gang is going to do the mixing. John Deere designed its vertical tillage tool to chop stalks to an acceptable size and begin soil mixing for breakdown, yet leave a considerable amount of residue on the cover.

The 2623VT comes equipped with 185-mm (7.25-in.) spacing on the front and rear gang. Both blade sizes on front and rear gang are 560 mm x 5 mm (22 in. x 0.197 in.). Optional 560-mm x 6.5-mm (22-in. x 0.256-in.) blades are available on front gang only.

Solid shallow concavity spherical blade, front

Solid shallow concavity spherical blade, front

• Chops and sizes residue
• Manages weeds
• Manages root balls
• Removes field ruts

Solid shallow concavity wavy blade, rear

Solid shallow concavity wavy blade, rear

• Mix soil and residue
• Aerates soil
• Anchors residue

185-mm (7.25-in.) spacing, front and rear

185-mm (7.25-in.) blade spacing

• Ideal for seedbed preparation
• Maximizes chemical incorporation

50-mm (2-in.) gang bolts

Gang tension system

John Deere's 2623VT Vertical Tillage tool provides an innovative approach to tension gang bolts.

Hydraulic fore-aft leveling

Hydraulic fore-aft leveling comes as standard equipment with John Deere's 2623VT Vertical Tillage tool. Operators can level the machine from the comfort of the tractor cab.

Sealed maintenance-free bearings (front view)

Sealed maintenance-free bearings (bottom view)

John Deere’s 2623VT Vertical Tillage tool features a sealed maintenance-free bearing. A high-density polymer liner allows the bearing to dynamically align the shaft in rough field conditions. The bearing and high-density polymer liner sit inside a cast housing. This cast housing was designed for strength and reliability as well as a built-in bearing wear guard.

These new bearings increase productivity by reducing the amount of time needed to service the tool before operation and allowing customers to spend more time in the field.

Residue management

Whether the plan is to use the 2623VT in the spring or fall, this machine was designed to handle any residue management situation. With a 21-degree angle on the front gang and 19-degree gang angle on the rear, this tool was created to have the aggressive sizing and chopping ability in tough residue in the fall and to have the finishing characteristics to build an ideal seedbed in the spring.

Shallow gang angle

Aggressive gang angle

Shallow gang angle vertical tillage tools can leave a wavy, washboard effect unsuitable for a proper seedbed. The 2623VT implement has an aggressive gang angle to help anchor residue, manage weeds and root balls, and create an even, smooth seedbed under the topsoil.

As crop yields increase, so does the amount of residue after harvest. The John Deere 2623VT allows customers to prepare soil for planting in the spring and residue management in the fall.

Utilize the residue calculator to identity the optimal residue management solution to meet the customer’s needs.

Hydraulic rolling basket with down pressure

Hydraulic rolling basket - in raised position

The 2633VT offers active hydraulic rolling baskets that give the operator wide-ranging adjustability for a variety of conditions. The drawbars and rolling basket on the rear harrow are built with strength in mind for demanding vertical tillage conditions.

The system was designed to run the rolling baskets in three different positions:

• Raised
  • Allows the operator to raise the rolling baskets in harsh, muddy conditions
• Float
  • Allows the operator to float the rolling baskets to lightly fluff soil
• Apply down pressure
  • Allows the operator to adjust the basket pressure to provide consistent contact with the ground
  • Provides a firm seedbed
  • Shatters root balls

The hydraulic rolling basket is offered with a round bar, or knife-edge. The knife-edge is best for heavier, wet soil.

With these rolling baskets, a cast frame was designed to encase the bearing in a high-density polymer liner to allow dynamic movement and maintenance-free characteristics. Similar to the gangs on the 2633VT, the active hydraulic rolling baskets feature maintenance-free bearings to minimize non-productive activities.

Hydraulic rolling basket down pressure valve

Hydraulic round bar rolling basket harrow

Hydraulic knife-edge rolling basket harrow

To change the rolling basket down pressure, simply rotate the down pressure valve dial clockwise to increase pressure and counterclockwise to decrease pressure.
