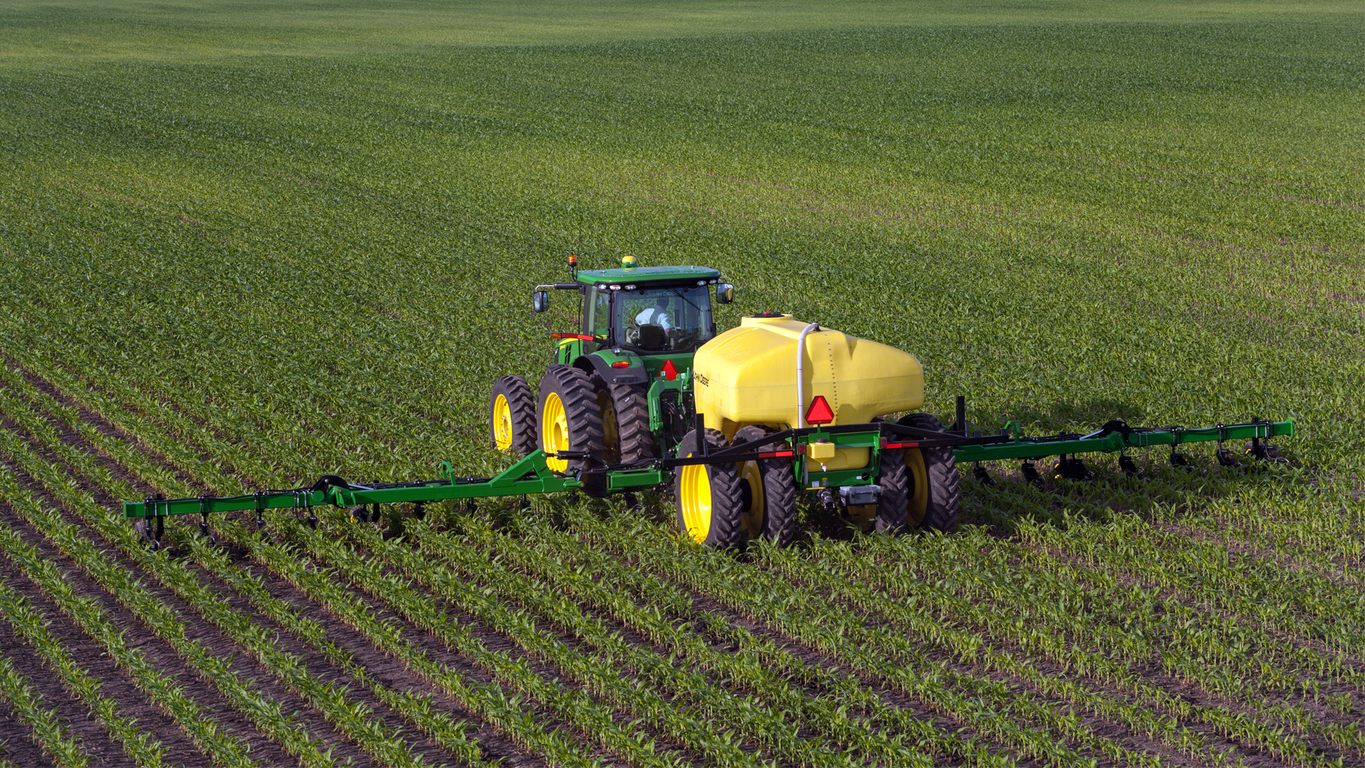

The John Deere 2510L offers several different sizes to fit any size operation, big or small.

Rate controller on 2510L

GreenStar 2630 Display

The 2510L comes standard with a GreenStar Rate Controller enabling full one-step integration of the GreenStar Display with the 2510L liquid system. This integration enables:

• Automatic rate control
• Field documentation
• Map-based prescriptions
• John Deere Section Control*

System pressure is monitored directly on the GreenStar Display and saves producers from having to monitor a manual gauge or keep it clean while in those dry, dusty fields.

John Deere Section Control reduces overlap, thus lowering input costs. The John Deere 2510L has up to five sections of control depending on size and configuration of the machine.

*John Deere Section Control activation required.

2510L Vertical-Fold in-field

Accurate fertilizer application is vital to increase fertilizer efficiency and effectiveness which will help a producer reach their yield goals. In addition to mainframe down pressure, the 2510L offers hydraulic wing down pressure and a flex-hinged design that ensures accurate fertilizer placement.

Hydraulic wing down pressure

Hydraulic wing down pressure gauge

The 2510L features hydraulic wing down pressure that applies constant down pressure on the wings to maintain constant depth and application.

Flex-wing hinge design

The flex hinge allows for 5 degrees up and down on the vertical fold:

• Ensure constant contact with the ground
• Increase performance in uneven terrain
• Maintain even working depth across the entire working width

2510L Vertical-Fold using wing kick

When using side-dress application, an operator’s ability to minimize crop damage during application is paramount. The 2510L comes in base with features such as hydraulic wing kick, single reach tongue, and higher operating clearances that allow operators to reduce that damage and expand that application window.

Hydraulic wing kick

Hydraulic wing kick is a key feature that helps reduce crop damage. No more dipping into the crop and damaging corn when turning. When the operator lifts the toolbar during the turn, the wings will automatically kick up in order to increase its distance from ground to toolbar. This action allows the operator to have increased clearance on the wings, minimizing crop damage.

Single reach tongue

2510L tongue

Unlike some fertilizer applicators with an A-frame tongue, the 2510L features a single reach tongue that is a single tube from the main cart frame to the hitch point. This allows:

• Sharper turning radius
• Reduced crop damage
• Better tractor to implement tracking

Operating toolbar frame clearance

2510L frame clearance

A 60.96 cm (24 in.) operating clearance allows the operator to maneuver in the field while minimizing crop damage.

2510L Vertical-Fold tank

The 2510L offers an industry-exclusive tank design that gives the operator increased productivity and versatility. This patented compact stealth tank offers:

• Low center of gravity for increased stability
• Large trough-sloped sump for maximum cleanout
• Unique design that allows for operating in various row spacing from 60 in. to 144 in. depending on coulter spacing, tires, and wheels selection

Tank capacity

The large tank capacities and quick cleanout allows the operator to spend more time in the field and less time rinsing. Tank sizes that are offered for the following sizes of applicators:

Tank fill

5.1-cm (2-in.) tank fill

7.6-cm (3-in.) tank fill

In order to reduce filling time, the 2510L offers 5.1-cm (2-in.) fill on 3974.7-L and 5110.3-L (1050- and 1350-gal.) tanks and 7.6-cm (3-in.) fill on 6813.7-L and 9085-L (1800- and 2400-gal.) tanks.
