Flail Mowers

FL10 Series

Key Features & Specs

  • Fixed position
  • Handle brush and turf grass
  • Sharp knives reduce material size
  • Leaves finished look


FEATURES
SPECIFICATIONS
EXPAND / CLOSE All
Durability & Versatility
#
#

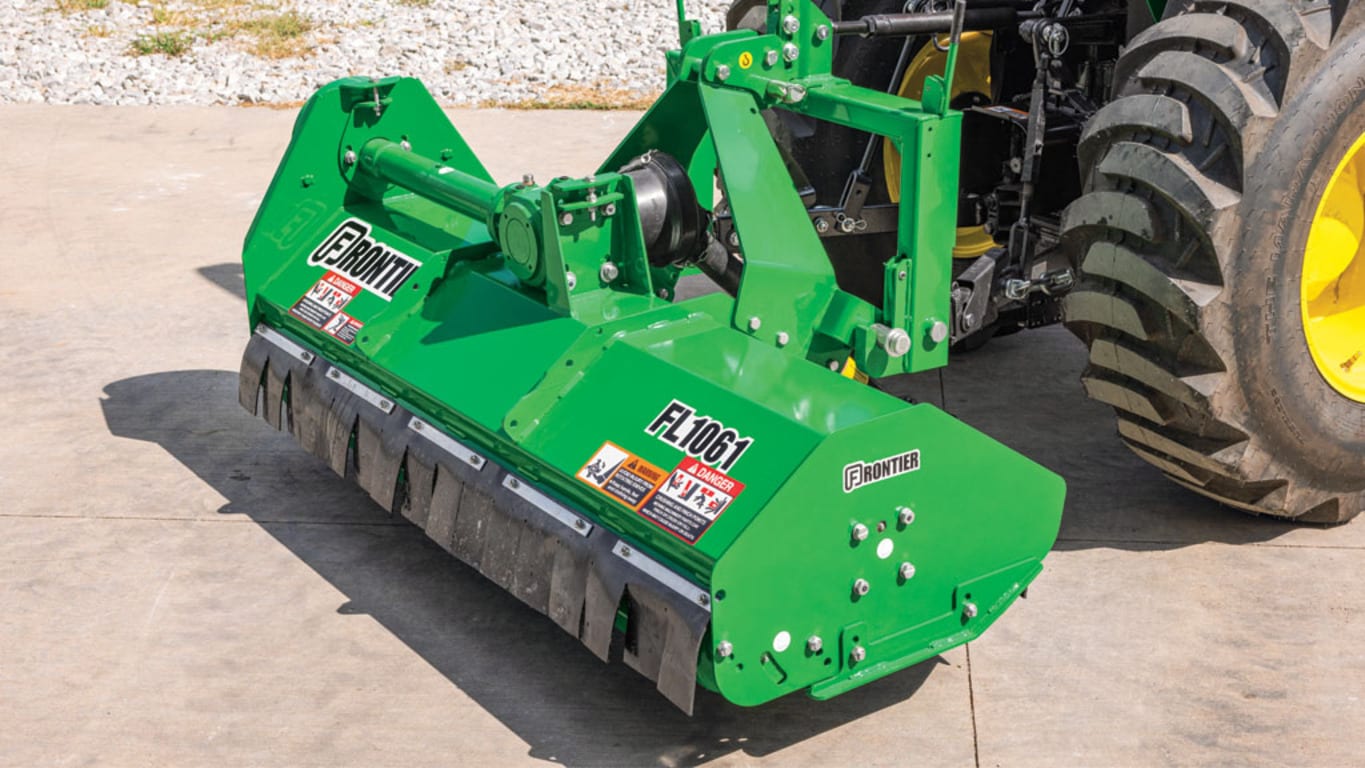

The Frontier ™ FL10 Series Flail Mower is built with the durability to handle tough jobs like cutting brush, but the versatility to leave turf grass with a finished look.



With the capability to perform in both Grooming Mower and Rough Cutting applications, the Flail Mower is perfect for a wide range of jobs such as waterways, fields, taller brush, ditches, banks, flat ground, hedgerows, pond maintenance, and turf grass.



The ability to have one implement to complete a variety of jobs means that operators can spend their time getting work done instead of spending time switching between implements.



In addition to covering a wide range of jobs, after the first pass, operators will be driving over clean land, sparing your tractor from constantly going against rough material.

Hammer Blades for a Range of Conditions
#

The FL10 Series models come standard with hammer blades. These are great all-purpose durable blades, providing aggressive cutting for tougher conditions while also delivering a high-quality cut on maintained fields.



* Y-Blades are offered as a kit through Service, best application for Y-Blades: shredding

Roller with Adjustable Cutting Heights
#
#

The roller can be adjusted into three different cutting height positions (low, medium, and high). These adjustments can help prevent blades from digging into the soil with changing conditions. Even in rough terrain, the roller can help achieve a smooth performance.

Skid Shoes
#

To prevent blades from digging into the soil on uneven surfaces, the position of the skid shoes can be adjusted to meet soil conditions.



For optimal cutting performance, adjustments to both the skid shoes and roller can prevent scalping and tilling the ground.

External Heavy-Duty Gearbox
#

The FL10 Series Flail Mower features an external gearbox making this rugged, heavy-duty gearbox easily serviceable and replaceable. The gearbox comes with a one-year warranty.

Parking Stand
#

Easily adjust the parking stand into the down position so the flail mower can simply be lowered to the ground during removal.

EXPAND / CLOSE All
Dimensions
Capacity, Cutting (in.)0.75 in.
Height, Cutting (in.).78 /1.57 /2.36 in.
Height, Overall (in.)31.2 in.
Length, Overall (in.)32 in.
Width, Cutting (in)61 in.
Width, Overall (in.)68.16 in.
Weight (lbs.)505 lb
Compatibility
Tractor HP Required (min. - max.)25 - 45 hp
Tractor Weight MINIMUM (lbs.)1550 lb
COG (in)15 in.
Hitch
Hitch Type3-point
iMatch CompatibleNo
Hitch Category1
Hitch PositionFixed Centered
Offset RangeNo
Hydraulic OffsetNo
Blades
Blade TypeHammers (std); Y-Blade (service)
Number of Hammers32
Type of Blades/ Hammers19 / 21
Blade Tip Speed (ft/min)8622 ft
Rotor
Rotor Diameter (in.)5 in.
Rotor Speed (rpm)2600 rpm
Rotor Thickness (mm.)8 mm
Rotor Work Diameter (in.)12.63 in.
Rotor Bearing TypeSPHERICAL ROLLER 22207
Drives
Gear Box Speed (rpm)540 rpm
Drive Belts2 - SPB Lp=1160
Gauge Roller Diameter (in.)5.5 in.
Other
Hydraulic Quick Coupler Size (in.)1/2 in.
Frame Thickness (mm.)3 mm
Side Frame Thickness (mm.)4 mm
Roller Bearing Diameter (in)2.4 in.
Rear Roller Bearing TypeD30 D62 B20 2206E 2RS1
Belt adjustmentScrew adjustment
Primary Pulley Diameter (mm.)225 mm
Secondary Pulley Diameter (mm.)140 mm
Hood Height (in.)15.35 in.
Side Case Height (in.)25.2 in.
PTO Yoke Height (in.)18.66 in.
