Round baler models

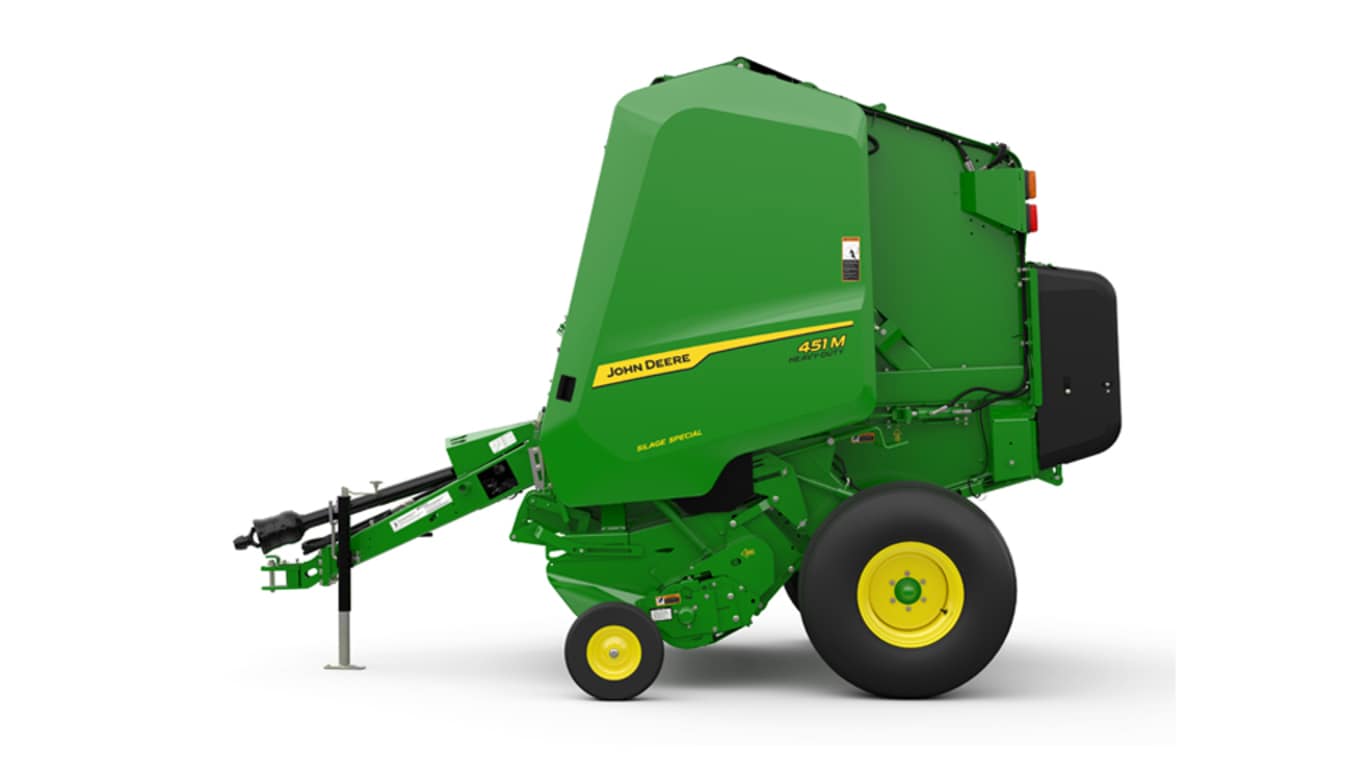

Model	Bale size	Available pickups
451E	1.2 x 1.5 m (4 x 5 ft)	Regular
451M	1.2 x 1.5 m (4 x 5 ft)	MegaWide™ Plus hydraulic pickup optional
451R	1.2 x 1.5 m (4 x 5 ft)	High-Capacity, High Capacity with Precutter
461M	1.2 x 1.8 m (4 x 6 ft)	MegaWide Plus hydraulic pickup in base
461R	1.2 x 1.8 m (4 x 6 ft)	High-Capacity, High Capacity with Precutter
551M	1.5 x 1.5 m (5 x 5 ft)	MegaWide Plus hydraulic pickup optional
561M	1.5 x 1.8 m (5 x 6 ft)	MegaWide Plus hydraulic pickup in base
561R	1.5 x 1.8 m (5 x 6 ft)	High-Capacity, High Capacity with Precutter

Round baler model specification

Baler option	Applicable models
E = Economy Dry hay only	451E
M = Standard Dry hay Silage	451M, 461M, 551M*, and 561M
R = Premium Dry hay silage Precutter	451R, 461R, and 561R



A MegaWide pickup is base equipment on 451E, 451M, 461M, 551M, and 561M Round Balers.



Hydraulic pickup is in base configuration on 451R, 461M, 461R, 561M, 561R.



Hydraulic pickup is an option on 451E (dealer installed), 451M (factory installed), 551M (factory installed)

MegaWide pickups make baling easier, especially in wide or windblown windrows, and increases productivity; more hay volume means more bales per hour.

• Flare-to-flare width of 1.8 m (5.9 ft) on balers with a 1.2 m (4-ft) wide bale chamber
• MegaWide pickup makes it easier to produce better-shaped bales and improves crop pickup in wide, windblown, or scattered windrows
• Mega teeth, located at the ends of the pickup, pull crop around the flares when baling wide or windblown windrows
• MegaTough pickup teeth provide greater strength and durability
• Exclusive square design handles high-impact loads without yielding
• Sturdy toothbar design
• Self-adjusting roller baffle
• Spiral rotor-feed system improves feeding in all crop conditions
• Chain driven for positive feeding
• Cut-out clutch protected
• Semi-pneumatic gauge wheels

Mega and MegaTough pickup teeth are base equipment:

• Mega teeth, at the ends of the pickup, are heavy-duty for long life and improved crop retrieval
• MegaTough pickup teeth are designed to withstand the harshest baling conditions and provide long service life

The 1.2-m (4-ft) balers use a full-length, reinforced toothbar design.

The 1.5-m (5-ft) balers use a heavy, C-channel construction. The pickup toothbars are divided into two half-sections that mount to a center spider for increased strength and even crop feeding.

Available only on the MegaWide Plus pickup, the patented roller baffle is self-adjusting and produces smoother crop flow across the pickup. The roller also improves crop pickup in small windrows and prevents roll ahead of crop.

When combined with the MegaWide Plus pickup, this feeding system allows increased ground speed with less chance of plugging for increased productivity in all field conditions.

• Self-adjusting
• Smooths crop for even flow across pickup
• Allows for faster ground speed with less chance of plugging
• Increases operator productivity

The MegaWide Plus pickup uses a rotor-feeding assembly, which mounts behind the pickup for smooth and even crop flow into the bale chamber.

• Augers and rotor teeth are driven on the same shaft, eliminating the need for additional drives.
• The rotor is fixed to the baler frame, allowing positive and even feeding into the bale chamber.
• Large-diameter converging augers have high crop-flow capacity, and auger scrolls help to force crop into the chamber.
• Spiral design enhances feeding in uneven windrows and reduces loading on the rotor.

Rotor strippers allow crop to be lifted from the rotor teeth into the chamber without cutting or wrapping the crop.

The MegaWide Plus pickups and spiral rotor are chain-driven for positive bale starts with cutout clutch protection. The pickup is being driven off the drive roll and bypasses the starter roll. This will allow for reduced wear and breakage of the starter roll chain.

Semi-pneumatic gauge wheels provide smooth ground gauging over uneven terrain and protection to the pickup.

• Stiffer rubber sidewalls
• No air pressure to maintain, which mean no flat tires
• Adjustable to meet pickup tooth-to-stubble height requirements

The pickup float springs are positioned for excellent flotation.

• Adjustable to meet varying field conditions
• Float springs only support the pickup reel
  • Rotor assembly is fixed to the baler frame, eliminating additional weight on the pickup system

The adjusting crank positions the pickup to the desired operating height to match crop or field conditions.

An optional hydraulic pickup lift cylinder is available as an attachment.

• Makes raising for transport or clearing obstructions easy
• Crank handle serves as a down stop
• Adapts to regular, MegaTooth and MegaWide Plus pickups
• Hydraulic pickup lift comes standard on premium machines



Heavy Duty Package

The heavy duty package is standard equipment on R series balers and option on M series balers. The components and features of the heavy duty package are below.

• Two year or 12,000 bale Warranty
• Cam-Cut Out Clutch
• Heavy-Duty Chain
• Pickup - Heavier Spider Gear, Cam Arm Bearings, Cam Shafts, and Bearings in Spider
• Larger Diameter Shaft and Bearings on #11 and #9 rolls
• Grease Bank

A silage-configuration baler allows the producer to put up silage hay. A silage configuration machine does not offer a precutter. There are three major components to a silage configuration baler: a staggered roller-auger kit (1), a starter roll-scraper knife, and a screen (2). The powered auger sits above the staggered roll on the baler to help keep wet hay from traveling up the belts and reduce buildup on the roll. The screen is bolted on the front of the baler as a safety feature. The knife/scraper is mounted in front of the starter roll to help prevent wrapping of wet crop on the starter roll.

The silage kit is offered as a bundle for field installation if the baler is not ordered as a silage-configuration machine from the factory. Attachment BE32442 is for 1.22-m (4-ft) wide machines and BE32443 is for1.52-m (5-ft) wide machines.

Also offered is a high-moisture kit. This kit does not include the same components that are on the silage-configuration balers. It offers the starter roll-scraper knife but does not include the staggered roll-auger kit. Attachment BE23828 is for 1.22-m (4-ft) machines and BE23829 is for 1.52-m (5-ft) machines.

Base equipment on: 451M Silage, 551M Silage, 461M Silage, 561M Silage, 451R Precutter, 461M, 461R Precutter, 561M and 561R Precutter

Auxiliary take-up rolls prevent belt crossover and flipping in wet conditions. This roll is base equipment on all silage and precutter configuration balers.

Integrated-sensor measurements for weight and moisture provide bale characteristics (moisture/weight). This technology enables producers to document bale moisture and weight and take data into Operations Center for post-harvest analysis. This allows better management decisions around water and nutrients, plus document that information to get higher prices for their bales, as well as possibly reduce their input costs.

Connecting linkage is attached to the net-wrap handles and the net-wrap is moved with the lift mechanism via remote tether. Net-hood lighting illuminate’s net-wrap components.

Integrated Preservative System allows producers to bale sooner and with less worry about bales molding. Comparable hardware to John Deere’s Exact Apply system Tank, pump, sensors, controller (hardware/software), and a distribution system.

The G5e External Speaker is an optional attachment for G5e displays only.

• Provides increased volume levels for all G5e display notifications
• Assist baling operations in situations with high in-cab noise or for operators with hearing impairments
• Installed externally on harness for easy access
• Omits sound separate from G5e display speaker to increase volume up to 16 percent
• Manually adjust volume by turning front dial left or right

The external speaker device provides increased volume levels for all G5e display notifications. It will omit a sound separate from the G5e display to assist baling operations in situations with high in-cab noise or for operators with hearing impairments. It is installed externally on the harness and can have volume levels changed by manually turning the front dial left or right. Adding the external speaker increases G5e notification volume by 16 percent. The external speaker is optional and is available as an attachment.

The 1 Series Round Balers came standard with an adjustable hitch and this feature will continue to be in base with the 1 Series Round Balers. This feature allows the hitch height to be adjusted to optimize crop-feeding performance. Due to the wide array of tractor tire sizes and drawbar heights, hitch adjustment may be necessary to get the proper feed opening of the baler. The adjustable hitch eliminates the need for the 51-mm (2-in.) thick tractor drawbar kit (AE57344) because it has a wider opening.

Benefits of the adjustable hitch:

• Ability to match baler to numerous tire sizes
• Allows for drawbar height to fall within 330 mm to 559 mm (13 in. to 22 in.) from the top of the drawbar to the ground
• Eliminates narrow feed opening on the baler which can cause plugging
• Allows pickup head to follow terrain without missing crop

All eight bolts must be used when adjusting the hitch. There are four different positions as shown below:

Also standard on all 1 Series Round Balers, except the 451E, is the drawbar shield. This helps to eliminate hay from getting caught on the hitch of the baler. The drawbar shield is designed to allow the operator to remove or attach the flap without having to unhook the baler from the tractor.
