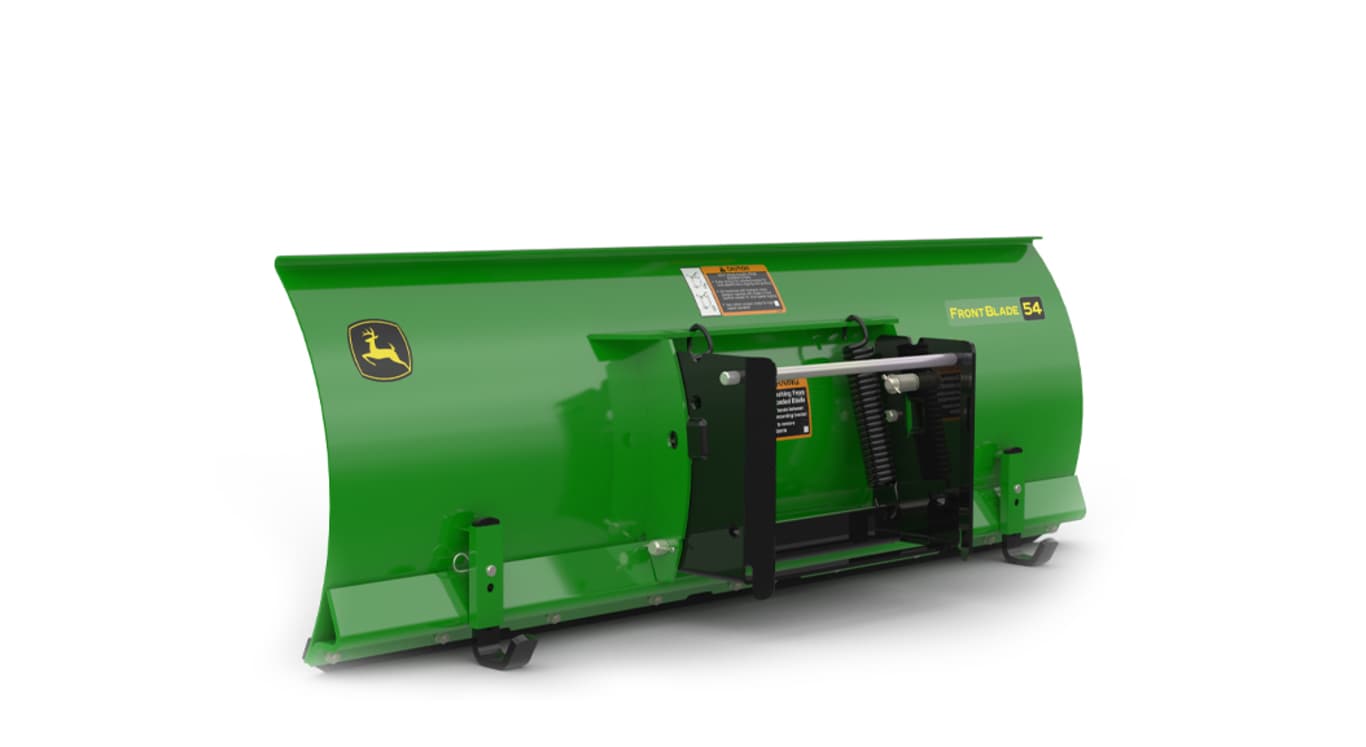

54-in. (137-cm) Quick-Hitch Front Blade

The 54-in. (137-cm) Front Blade is excellent for moving snow, gravel, dirt, sand, or other loose material. It can be hydraulically angled up to 27 degrees right or left or used in the straight-ahead position.

The front quick-hitch mounting system allows for tool-free change between the front blade, rotary broom, and snow blower on garden and small-chassis tractors.

Front blade heavy-duty construction

Welded reinforcing angle behind front edge

A reinforcing angle is welded behind the front edge of the blade to provide added strength.

A replaceable cutting edge greatly extends the useful life of the blade. The cutting edge and blade form a continuous curve:

• Rolls rather than pushes material, providing greater capacity

Breakaway feature

Breakaway feature locking pin

Two large coil springs allow the bottom of the blade edge to be pushed back if a solid object is struck:

• The operator does not receive a hard jolt.
• The chance for damage to the blade is reduced.
• A locking pin enables the blade to be locked in the vertical position.

Adjustable skid shoe

Adjustable skid shoe (optional heavy-duty skid shoe shown)

Adjustable skid shoes on each side of the blade allow the operator to select the correct blading height to match various conditions and job requirements:

• Skid shoes are adjustable to eight different heights.
  •  Seven at  0.5-in. (12.7-mm) increments and one at 1-in. (25.4-mm) increment
• Uniform grading/blading is easier when using the adjustable skid shoes.
• Skid shoes are replaceable, as they wear out over time.

Front quick-hitch mounting system

The hitch slips over and locks onto the tractor frame with attached snap pins:

• No tools are required.
• No loose parts to find.
• The same hitch works with several front-end attachments, including the front blade, rotary broom, and snow blower.
• When used on X Series Tractors, the front quick-hitch can be installed on the tractor when the mower is installed.
  • Use of the front blade while the mower is installed is not optimum, because ground clearance is reduced and the mower deck may be damaged.

NOTE:

1) 2305, 2025R, 2032R, 2320, 2520, and 2720 Tractors must be equipped with front-attaching support kit for use with the Quik-Tatch  front hitch.

2) If  planning to use a Quik-Tatch front hitch with an OnRamp™ mower (2025R, 2032R, 2320, 2520, 2720 only), a front hitch/mid mower combo bracket is needed to retain a tool-free change between the front hitch and the mid-mower.

Quick-hitch hydraulic lift and angling

The front blade has a vertical working range of approximately 12 in. (30.5 cm), with enough height for clearance over curbs and also the ability to work below ground level.

The blade can be used straight ahead or angled left or right, up to 27 degrees:

• Allows moving the bladed material off to the side and out of the way
• Allows blading in a back-and-forth operation (no need to deadhead back to the origin)

The blade is angled, raised, and lowered by using the tractor hydraulic system.

Angling cylinder

Hydraulic angling is available:

• Infinite positions up to 27 degrees left or right
