Details New

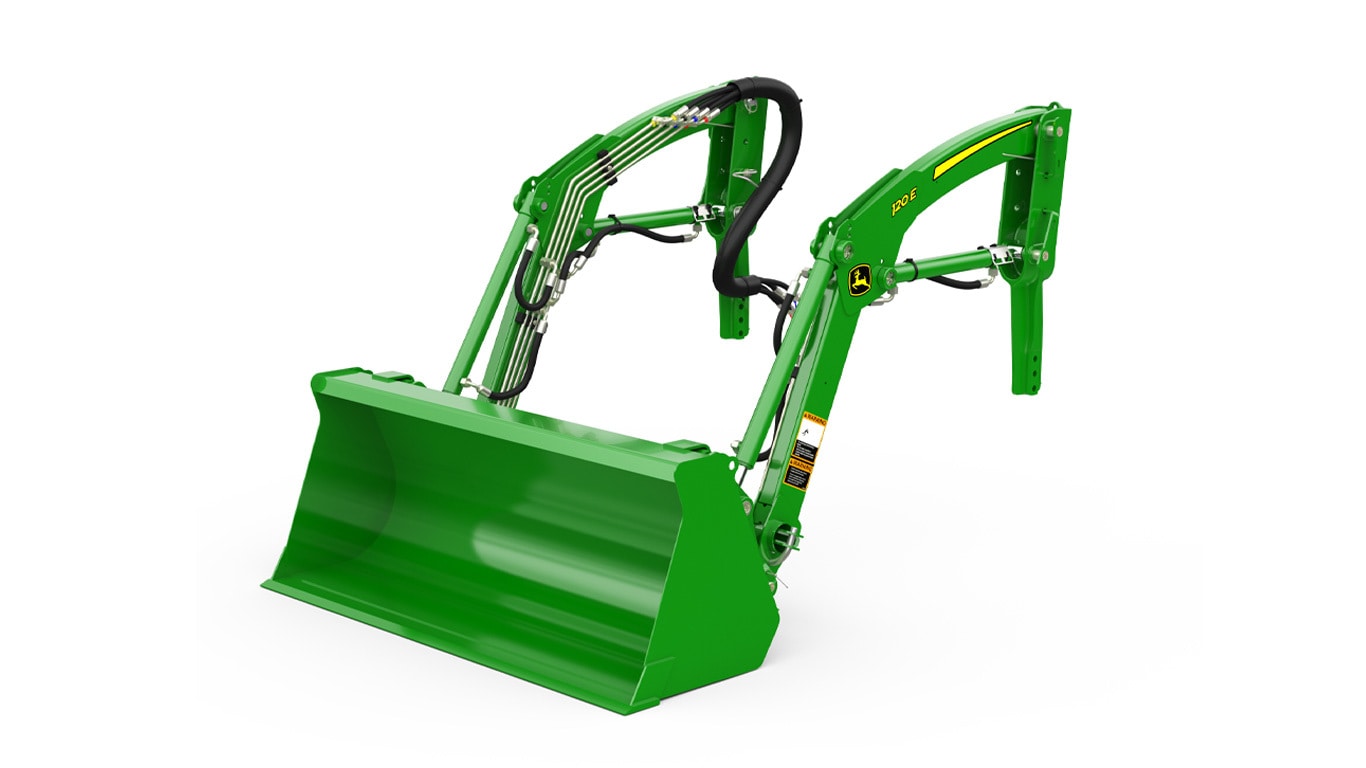

Loader

120E

Test Drive

REQUEST A QUOTE

Value Your Trade

Get Financing

Key Features & Specs

Compatible with 1023E and 1025R Tractors
Curved boom design
Quik-Change attachment carrier standard
Parkable

Print Page

FEATURES

SPECIFICATIONS

EXPAND / CLOSE All

Easily remove and mount loader to and from the tractor without tools

Parking mounting system

The parking mounting system on the 120E Loader is designed for easy removal and mounting to and from the tractor without tools.

Similar to that of the D120, the 120E parking stands are kept in the torque tube for easy accessibility. To park the loader, simply install parking stands, remove pivot pins from the mast, disconnect the hydraulic hoses, and back out the tractor.

Images are from the former D120 loader with straight boom

Easy removal and mounting

Mount to and from tractor without tools

End-of-pin lubrication on cylinder and pivot pins allows easy access for servicing grease points

Pivot pin

The unique offset head design eliminates cross-pins and cotter pins to retain the pin.

A nut ensures the pins remain in position.

A lubrication groove provides a path for lubrication.

End-of-pin lubrication allows easy access for servicing grease points, which are visible from the side of the loader.

EXPAND / CLOSE All

Key Specs

Maximum lift height	1809 mm 71.2 in.
Lift capacity at full height	Measured at pivot 375 kg 825 lb Measured at 500 mm ahead of pivot 259 kg 570 lb
Boom breakout force	Measured at pivot 806 kg 1808 lb Measured at 500 mm ahead of pivot 552 kg 1238 lb
Bucket rollback force capacity	At ground-level line 707 kg 1559 lb
Clearance at full height - bucket dumped	1371 mm 54 in.
Dump angle, degrees	-40.1 degree (angle)
Rollback angle, degrees	31.2 degree (angle)

Tractor

Model	1023E/1026R Tractor
Front tire	18x8.5-10 4PR R4
Rear tire	26x12.00-12 4PR R4
Front axle configuration
Wheelbase	1450 mm 57 in.
Pump capacity	3.5 gpm
Rated pressure	1987 psi

Loader

Base weight	220.5 kg
Leveling configuration
Bucket used	Pin on Materials 1250 mm 49 in.
Bucket weight	53 kg 117 lb
Lift capacity at full height	Measured at pivot 375 kg 825 lb Measured at 500 mm ahead of pivot 259 kg 570 lb
Lift capacity at 59 in. (1500 mm)	Measured at pivot 429 kg 944 lb Measured at 500 mm ahead of pivot 309 kg 680 lb
Boom breakout force	Measured at pivot 806 kg 1808 lb Measured at 500 mm ahead of pivot 552 kg 1238 lb
Bucket rollback force capacity	At maximum height 593 kg 1330 lb At 59-in. (1500-mm) lift height 711 kg 1568 lb At ground-level line 707 kg 1559 lb
Dimensions	Maximum lift height 1809 mm 71.2 in. At full height - bucket level 1653 mm 65.1 in. At full height - bucket dumped 1371 mm 54 in.
Overall length	2.6 m 8.6 ft
Overall height in carry position
Digging depth	-101 mm -4.0 in.
Reach	At maximum height 571 mm 22.5 in. At ground level - bucket level 1176 mm 46.3 in.
Bucket angle	Dump angle, degrees -40.1 degree (angle) Rollback angle, degrees 31.2 degree (angle) Dump angle, ground -114.0 degree (angle)
Cycle times	Loader raise, seconds 4.0 seconds Loader lower, seconds 2.5 seconds Bucket dump, seconds 5.7 (without regen)/2.2 (with regen) seconds Bucket rollback, seconds 3.5 seconds
