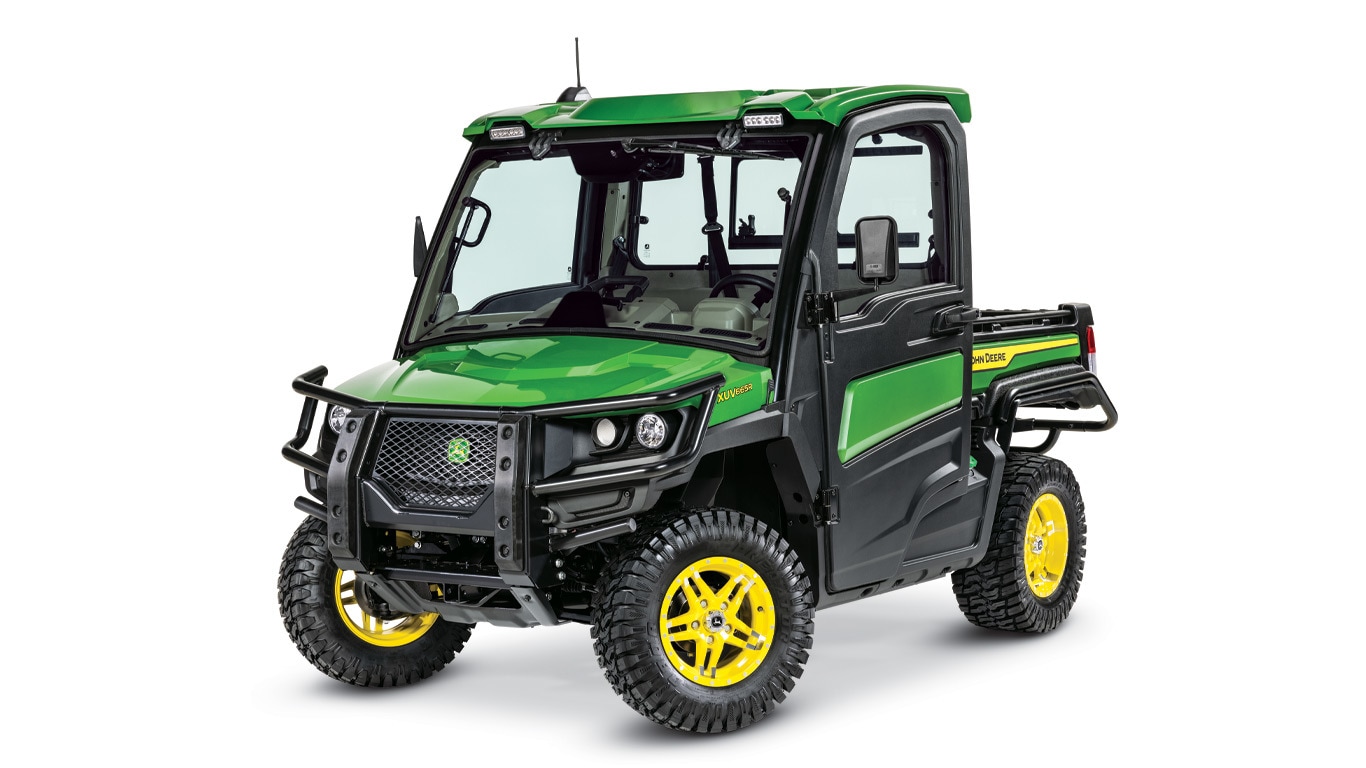

The Signature Edition Gator Utility Vehicles leverage technology to deliver a distinctive experience. Features include:

• Factory-installed touchscreen infotainment system
• Bumper Pro Brush Guard, rear fender flares, rear fender guards, and rear bumper
• Genuine leather 40/60 split three-passenger bench seat
• Rear-facing camera
• Easy-access rear-sliding window
• Leather-wrapped grab handle
• Signature Edition badges
• Front roof-mounted light-emitting diode (LED) driving lights
• Maxxis® Bighorn® 2.0 extreme terrain or Predator Heavy-Duty all-terrain radial tires with alloy wheels
• Cargo box power lift
• Deluxe cargo box with spray-in liner, brake lights, and taillights
• Green and yellow color
• All existing R-trim cab features including:
  • Integrated heating, ventilation, and air conditioning (HVAC)
  • Stone interior
  • Sport steering wheel
  • Sound dampening headliner and rear panel cover
  • A- and B-post covers
  • Interior rearview mirror, sun visor, and dome light
  • Windshield wiper and washer

Factory-installed touchscreen infotainment system

Signature Edition’s standard 16.3-cm (6.4-in.) touchscreen infotainment system delivers seven speakers, rear-facing camera, Bluetooth® wireless connectivity, AM/FM, and SiriusXM® satellite radio. The infotainment system is designed for use during operation and while parked.



The touchscreen infotainment system is compatible with Apple CarPlay and Android Auto. CarPlay allows iPhone users to place hands-free phone calls, send messages, check the weather, and access Apple Music and Maps through the infotainment system touchscreen or with their voice through Siri. Android Auto enables Android smartphone users to place hands-free phone calls, send messages, check the weather, play music, and get driving directions. An operator can also control the apps on the infotainment system using Google Assistant voice controls.



When using CarPlay or Android Auto, the touchscreen and voice control user experiences are provided by the iPhone or Android smartphone app software. Screen layouts, icons, menu structures, and voice commands are designed to be familiar to the iPhone or Android smartphone user. To use CarPlay or Android Auto, the iPhone or Android smartphone must be connected using an USB cable. A Bluetooth® wireless connection provides basic smartphone functions using infotainment system’s software.



Background noise may limit the usability of voice controls while the vehicle is being operated. The iPhone or Android smartphone app software must also be compatible with CarPlay or Android Auto.



Seven-speaker infotainment system professionally tuned by Harman:

• Two headliner and two dash full-range speakers
• Two A-pillar tweeters and an under-seat subwoofer
• Water-resistant construction prevents damage in outdoor environments
• Powerful for listening outside the vehicle

Rear-facing camera:

• Is displayed on the infotainment screen with the push of a button
• Can be used at any time, including spreading and spraying
• Assists in positioning the vehicle to accurately place material dumped from the cargo box
• Provides visibility to the hitch ball to precisely align trailer hitches
• Is mounted to cargo box, and the box can be raised for a hitch-focused perspective

Sirius XM satellite radio:

• Provides access to hundreds of channels of music, live sports, world-class news, and entertainment
• Includes a factory-installed antenna
• Requires a separate subscription

USB ports:

• Can be used to charge phones and USB devices
• Supports connectivity
• Are located under the radio

Auxiliary port:

• Allows any audio device with a headphone jack to play music through the infotainment system
• Is located under the radio

Bumper Pro Brush Guard, rear fender flares, rear fender guards, and rear bumper

Signature Edition vehicles include components to protect the vehicle:



• Bumper Pro Brush Guard:
  • Protects the front grille, lights, hood, and sides
  • Has eye-catching and assertive appearance
  • Includes full-height rubber bumpers to soften contact with obstructions, including cattle gates
  • Has center screen that keeps trash from entering the radiator, which eases maintenance
  • Reaches around the side, so there is no need for brush guard extensions
  • Tilts forward for hood access
  • Is compatible with BUC10247 front fender guards
  • Is not compatible with BM26215 LED driving lights
• Rear fender flares:
  • Keeps mud and debris off the vehicle
  • Refined molded construction
  • Includes BUC11375 rear fender flares
• Rear fender guards and rear bumper:
  • Protects the rear and sides of cargo box
  • Includes BUC11320 rear fender guard and BM22767 rear bumper

Genuine leather 40/60 split three-passenger bench seat

Signature Edition vehicles feature a genuine leather bench seat that is durable and comfortable. An embroidered John Deere logo adds to the distinctiveness of a Signature Edition vehicle.

Rear-sliding window

Signature Edition vehicles include a rear-sliding window that can provide access to the cargo box and provide additional ventilation.

Leather-wrapped grab handle

Signature Edition vehicles include a leather-wrapped grab handle. The stitching is eye catching, and a foam base layer gives a soft feel.

Signature Edition badges

Signature Edition vehicles include badges on the dash and tailgate to designate their exclusivity. The tailgate’s Gator badge is also upgraded to complement the Signature Edition badge.

Front roof-mounted LED driving lights

Signature Edition vehicles include factory-installed LED driving lights mounted to the front of the cab roof. The LED lights have a driving-focused beam pattern to illuminate directly in front of the vehicle.

R-trim cab features

Signature Edition vehicles include all the R-trim cab features including:

• Heating and air-conditioning
• Stone interior
• Sport steering wheel
• Sound dampening headliner and rear panel cover
• A- and B-post covers
• Interior rearview mirror, sun visor, and dome light
• Windshield wiper and washer

You will feel confident and comfortable, even on tough terrain, with a full-size Gator™ Utility Vehicle. You will feel stable with a low center of gravity and a wide stance. Engine braking and four-wheel hydraulic disc brakes keep you in control on steep descents, even when fully loaded. The power steering on M- and R-Trim vehicles, is smooth and responsive.

Standard four-wheel drive with rear differential lock

With standard four-wheel drive and rear differential lock, both instantly available with the flip of a switch, you can get where you are going.

Dual A-arm front and rear independent suspension

The independent suspension provides a smooth ride as 203 mm (8 in.) of front suspension travel and 229 mm (9 in.) of rear suspension travel cushions bumps and glides over ruts. And clearing rocks and roots is no problem with 284 mm (11.2 inches) of ground clearance.

Tires for any terrain

Full-Size Gator Utility Vehicles are available with three tire options:

• Terra Hawk all-terrain tires
  • Tread pattern and wide footprint provide excellent traction with minimal impact on terrain
• Maxxis Bighorn 2.0 extreme terrain radial tires
  • Radial construction provides shock absorption, allowing for a smoother ride
  • Non-directional tread pattern provides predictable cornering and claws up roots and rocks
• Predator Heavy-Duty all-terrain radial tire
  • Radial construction provides shock absorption, allowing for a smoother ride
  • Flat profile increases footprint area, reducing ground pressure
  • 8-ply rating delivers up to three times the life of Bighorn tires



Maxxis® Bighorn® is registered trademark of Cheng Shin Rubber Ind. Co., Ltd.

Full-size Gator™ XUVs are built to work hard and go the extra mile.

Heavy-duty frame

The hefty frame is designed to stand-up to all the bumps and bends of the trail, and the standard front skid plate protects key components from damage.

Constant velocity boot protection

Constant velocity joints are enclosed to keep water and dirt out. A protector shield protects the boot from trail debris.

Automotive-grade panels and optional protection packages

The hood and side panels are made of automotive-grade materials that resist scratches and dents, and the cargo box is made of tough composite material that resists dents and rust. Optional protection packages look tough and provide even more protection.



TrueTimber® is a trademark of True Timber Outdoors Holding Company, LLC.

When you sit behind the wheel of a full-size Gator™ Utility Vehicle, you will be reminded of your favorite pick-up truck. There are controls at your fingertips, an easy-to-read instrument panel, and outlets to recharge your phone.



Shift from park and into gear with a throw of a single lever. Power steering on M- and R- trim vehicles is smooth and responsive.



When the going gets tough, you can instantly engage four-wheel drive and rear differential lock with switches. Even at night, the backlit switches are easy to see. If a front wheel starts to slip, the front differential automatically locks to pull you through.

When you hop into the seat of a full-size Gator™ Utility Vehicle, you will notice there’s seating for you, plus two.

Three-passenger seating with room to spare

The adjustable operator’s seat and tilt steering lets drivers of all sizes get comfortable, and the passenger grab handles help everyone feel secure. The low step height and generous opening between seat base and fender is even designed to accommodate bulky work boots.

Climate-controlled comfort

On cab vehicles, you will enjoy standard heating and air-conditioning that will keep you comfortable in every season, and the tight-closing doors help seal out dust and reduce noise. When you want to let in the breeze, you can also roll down the windows and open the front windshield.

Upgrade to R-trim refinements

R-trim vehicles have an upgraded stone-colored cab interior with headliner and rear panel to reduce noise. Standard LED headlights, sun visor, dome light, rearview mirror, and sport steering wheel round out the package.

Stone cloth seat

R-trim vehicles also include a stone cloth seat that keeps cool in the hot sun and warms up quickly in the winter.

Precision ag technologies have changed the way we farm, and John Deere has been at the forefront of that change. Adding the AutoTrac™ assisted steering system and JDLink™ Modem options to Gator Utility Vehicles brings precision ag technology to farms of all sizes.



The AutoTrac Ready option enables hands-free steering through the field decreasing overlap and lowering input costs while reducing operator fatigue. The JDLink Modem option connects your vehicle to the John Deere Operations Center so the vehicle can be managed with the rest of your fleet.

Simplify field boundaries

• Check field boundaries and identify hazards as the Gator Utility Vehicle steers itself along established boundary lines.
• Create new boundary lines, even when the soil is too wet for larger equipment.



Improve soil mapping

• The days of picking a tree across the field to navigate are over. Use guidance lines to create a sampling grid and let your Gator Utility Vehicle keep you on track as you pull plugs across the field.



Connect your Gator Utility Vehicle to the rest of your fleet

• Leave the USB drives at home as you wirelessly send your data to and from your Gator Utility Vehicle.
• A planter operator can flag the exact location of a large rock so the Gator UV can be sent to the location to remove the hazard.



Save time and stop waiting for the perfect day to spray

• When paired with a tow behind sprayer and rate controller, the Gator Utility Vehicle’s lighter weight allows work to be completed when the ground is too wet for larger equipment.
• Speed through spraying by allowing the Gator Utility Vehicle to steer a predefined path around buildings and fence rows.



Track productivity, maintenance, and machine vitals

• Track the current and past locations of your Gator Utility Vehicle in the John Deere Operations Center, just like the rest of your fleet.
• Know when your Gator Utility Vehicle is ready for scheduled maintenance



Share StarFire™ Receiver and Universal Display

• You can leave precision ag technology components installed year-round or share your StarFire Receiver and Universal Display with another piece of equipment.

The full-size Gator™ XUV can haul 454 kg (1000 lb), so load it up with confidence. You can also make fewer trips with 1814 kg (4000 lb) of towing capacity and a standard 51-mm (2-in.) receiver hitch.

Built-tough cargo box

The cargo box resists dents, scratches, and rust because it is made from a tough composite material. You will have no problem securing loads with integrated tie bars and 14 tie-down points. You can also convert the cargo box to a flatbed when you need to haul big and bulky loads.



The cargo box measures 1143 mm (45 in.) long, 1320 mm (52 in.) wide, and 305 mm (12 in.) deep.

One-handed tailgate

Since your hands are always full, the tailgate can be opened and closed with one hand. You can also lower the tailgate to carry longer items or remove it for easy cleanout.

Power lift

To save your back, the optional cargo box power lift empties heavy loads with the push of a button.

The XUV865 and XUV825M S4 Gator™ Utility Vehicles are powered by a fuel-efficient and durable diesel engine. The enclosed drivetrain automatically adjusts for fast acceleration, along with powerful hauling and hill-climbing capabilities. With plenty of torque to get the job done, this engine will provide reliable performance for years to come.
